500C-1000C 750V Pure Nickel Mica Tape Braided Fiber Glass MGT Wire

500C-1000C 750V Pure Nickel Mica Tape Braided Fiber Glass MGT Wire

1.Rated Temperature:500℃~1000℃

2.Rated Voltage:750V

3.Conductor use bare copper,nickel plated copper or pure nickel wire of single or stranded wire with 0.5~25mm2.

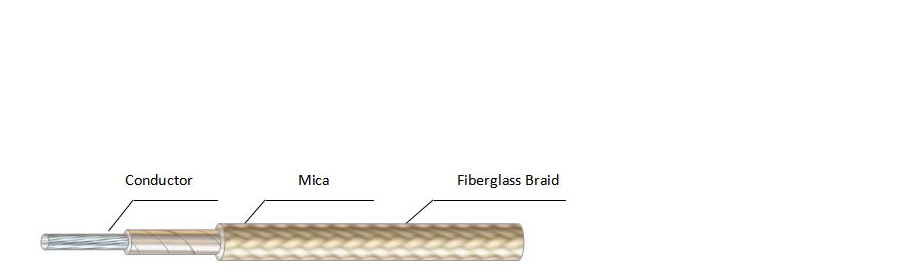

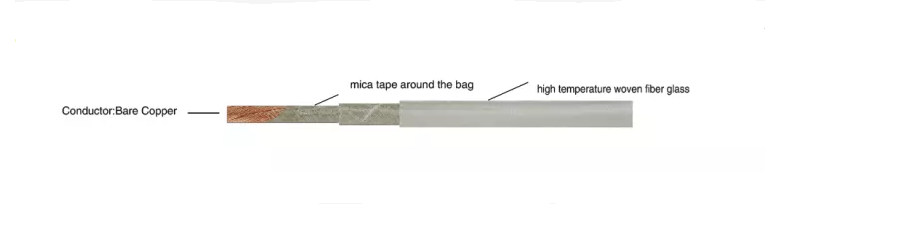

4.The insulation is made of natural mica tape wrapped around and glass fiber braided,

5. imported high temperature mica glue vacuum high temperature sintering composition.

6.Colors are red,blue,white,yellow,green,brown,black(general color is milky yellow).

Field of application :

Apply to metallurgy,petroleum,chemical,oven,boiler,power plant,fire facilities,civil furnace,natural gas,furnace temperature environment and need to performance of various electrical devices cable.

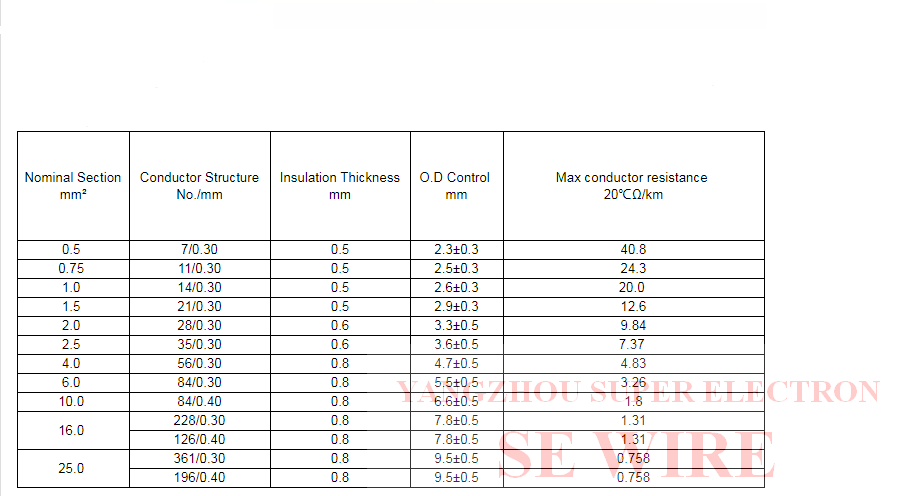

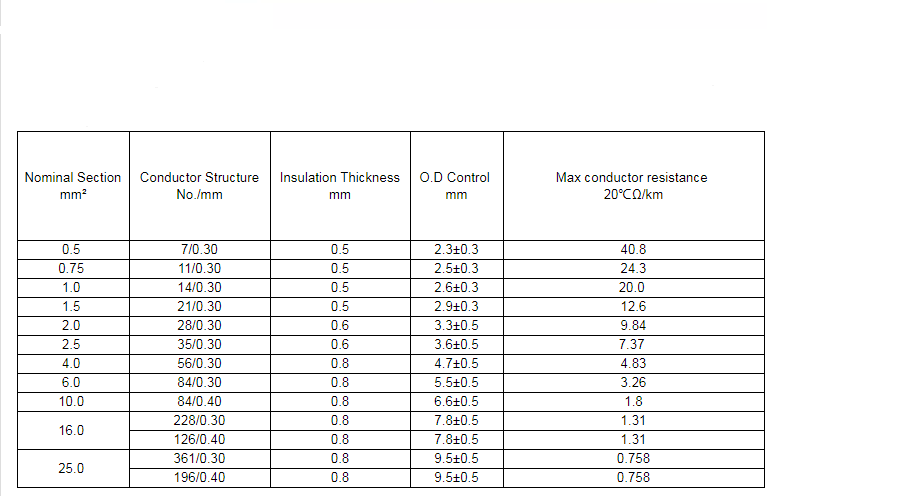

Product Parameter:
