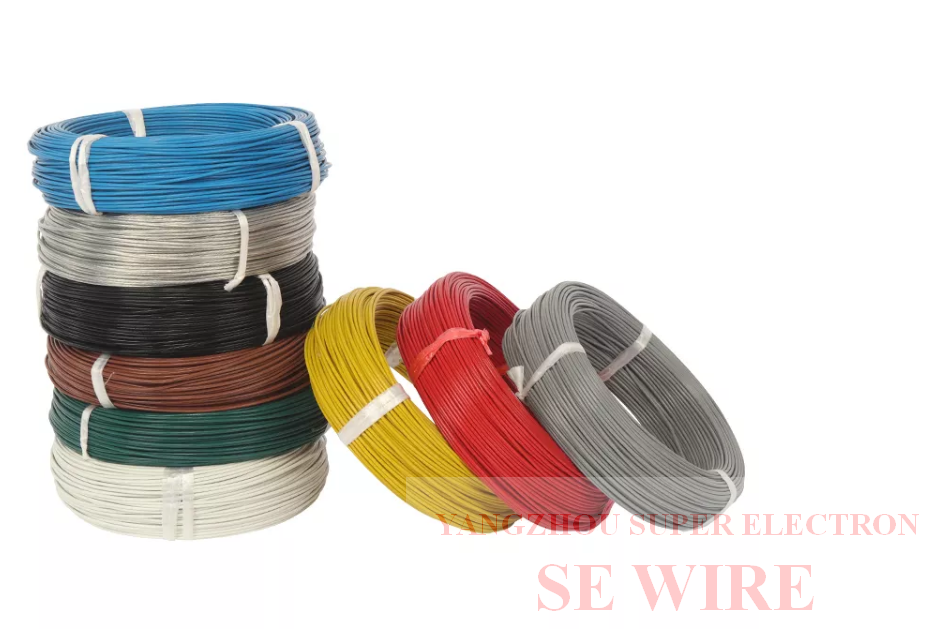

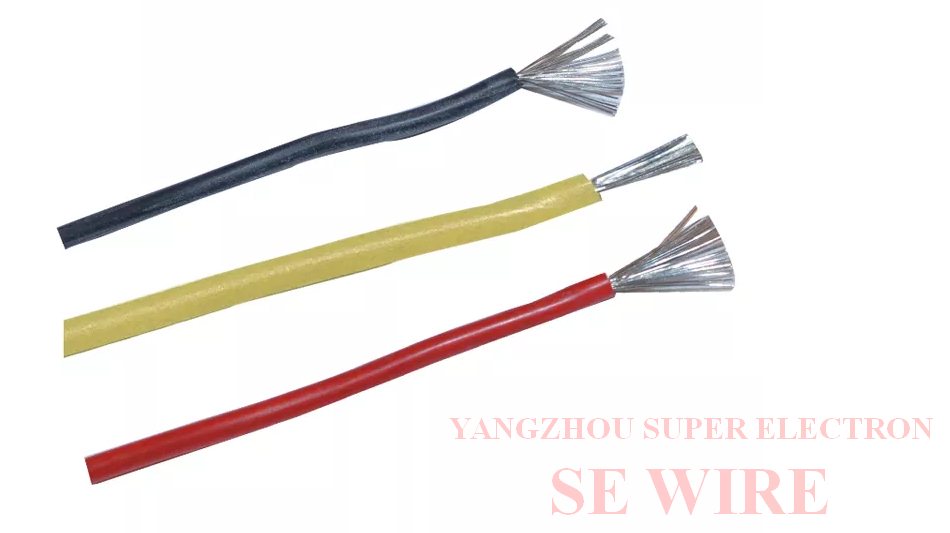

PTFE Insulated Telflon Wire

PTFE Insulated Telflon Wire

PTFE insulated Telflon wires have excellent electrical and mechanical characteristic, and extremely high thermal, cold, and chemical resistance. They are particularly well-suited to use in high-temperature environments such as near furnaces or engines. They can also be used in extremely low-temperature environments or environments with exposure to chemicals such as chemical plants.

9 colors: black, white, red, yellow, green, brown, orange, grey, and purple, customizable.

• Soft copper single wire
• Soft copper stranded wires
• Tin-plated soft copper single wire
• Tin-plated soft copper stranded wires
• Silver-plated soft copper wire
• Nickel-plated soft copper wire
• Copper alloy wire

• Maximum continuous usage temperature: 250ºC
• Excellent electrical characteristic such as low relative dielectric constants and small dielectric losses.
• Outstanding resistance to heat, cold, oil, and chemicals, and also incombustible.

• Application:

• Internal wiring for electronic devices, information devices, etc.
• Secondary lead wires for general equipment
• Wiring for use near furnaces and engines which reach high temperatures
• Wiring in environments with extremely low temperatures (-200ºC and lower)
