K-CGP Thermocouple Wire&Cable

K-CGP Thermocouple Wire&Cable

Color: P: Green,N:White
Size:2*26-2*14AWG
Package: 305m/roll

Description

Name:Thermocouple wire

Model：K-CG-P Type

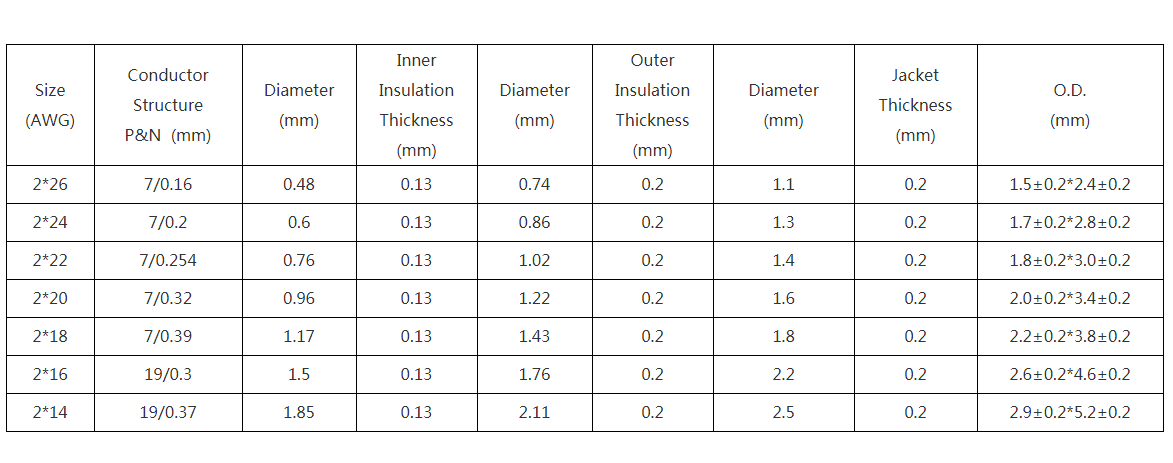

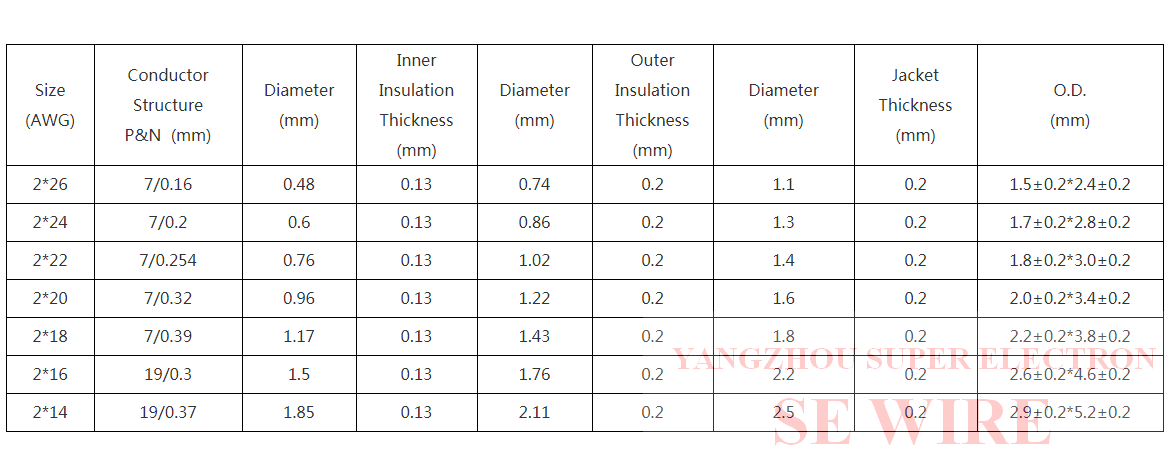

Size:2*26-2*10AWG

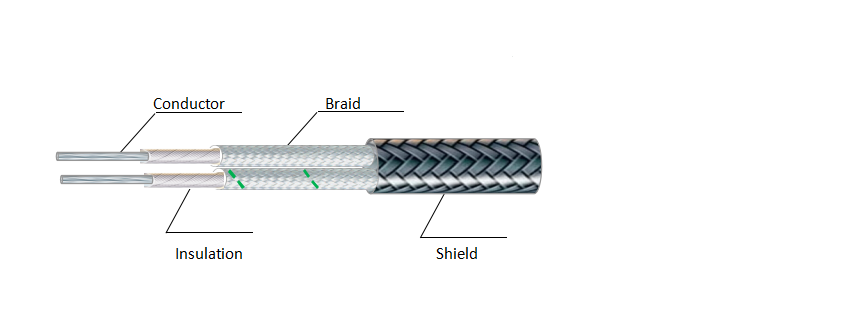

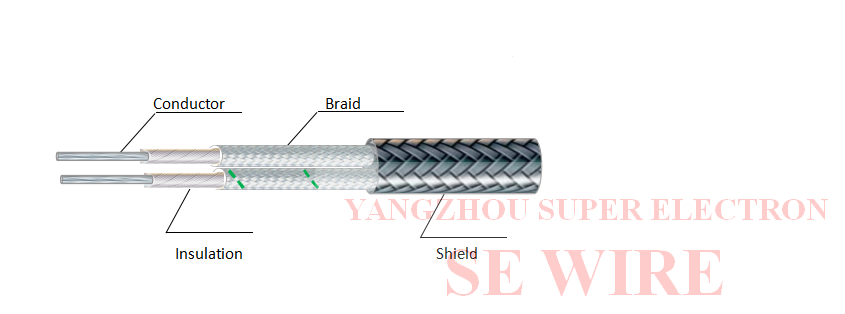

Structure

Conductor：Ni-Cr ,Ni-Si, Ni-Al

Inner Insulation:Fiberglass Wrapping and Silicone Resin Coating

Outer Insulation:Fiberglass Braid  and Silicone Resin Coating

Color:Positive White With Green Stripe Negative White

Shield:Stainless Steel
