K-GGPA Thermocouple Wire&Cable

K-GGPA Thermocouple Wire&Cable

Color: P: Green,N:White

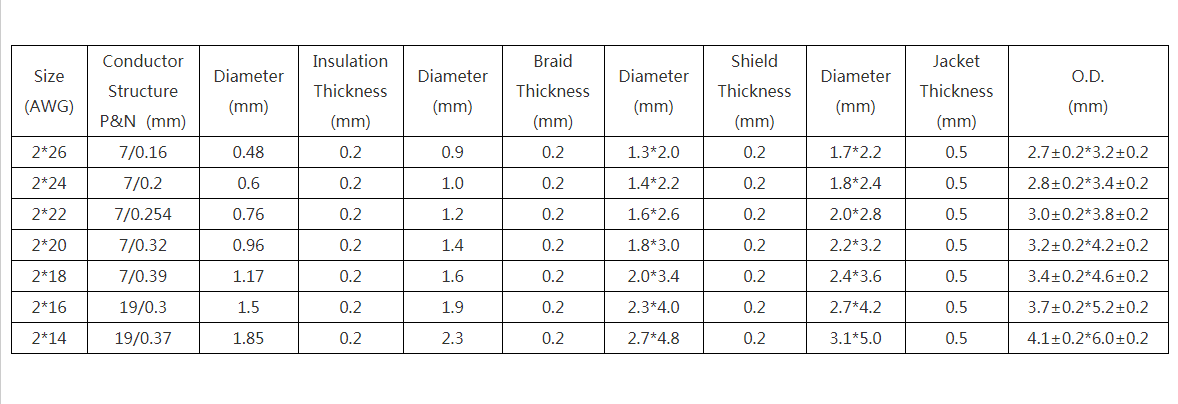

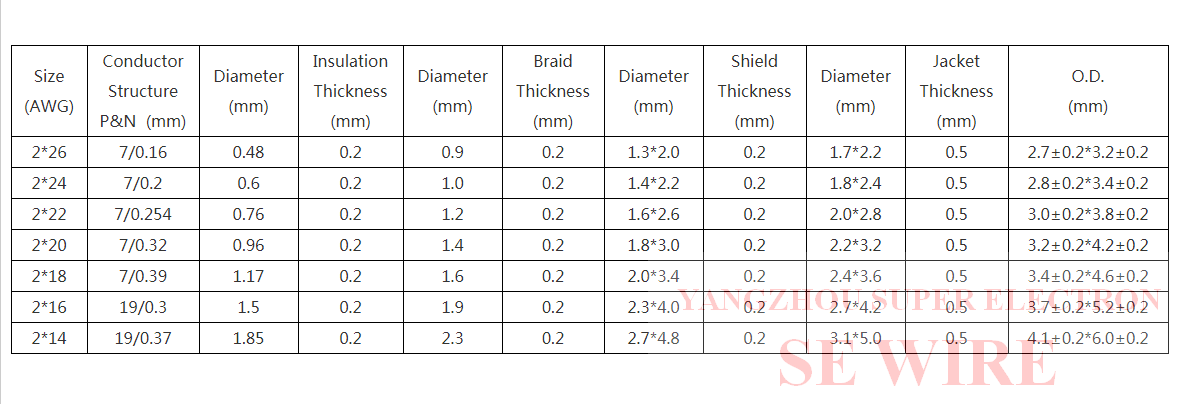

Size:2*26-2*14AWG
Package: 305m/roll

Description

Name:Thermocouple wire

Model：K-GG-PA Type

Size:2*26-2*10AWG

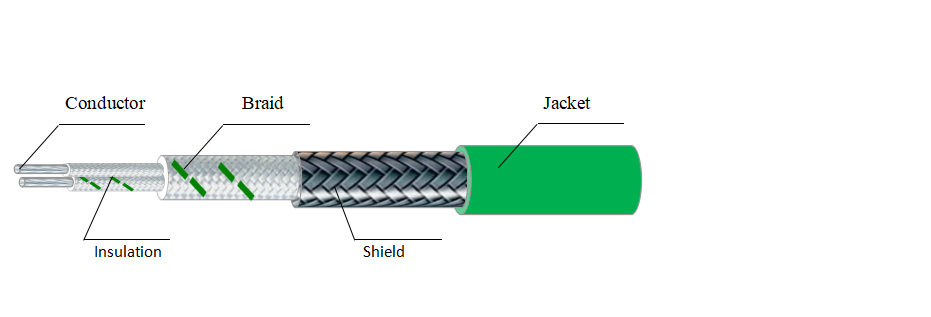

Structure:

Conductor: Ni-Cr,  Ni-Si/Ni-Al

Insulation: Fiberglass with silicone resin coating

Color:Positive White With Green Stripe Negative White

Braid: Fiberglass with silicone resin coating

Color: Green stripe

Shield:Tin-plated Copper

Jacket:PFA

Color: Green
