K TYPE

KX-AGGP Thermocouple Wire&Cable

KX-AAP Type
2*26-2*14AWG
Insulation: FEP
Conductor: Positive Ni-Cr, NegativeNi-Si
Product description: KX-AGGP Thermocouple Wire&Cable Color: P: Green,N:White Size:2*26-2*14AWG Package: 305m/roll
INQUIRY

Color: P: Green,N:White
Size:2*26-2*14AWG
Package: 305m/roll

Description

Name:Thermocouple wire

Model:KX-AG-GP Type

Size:2*26-2*14AWG

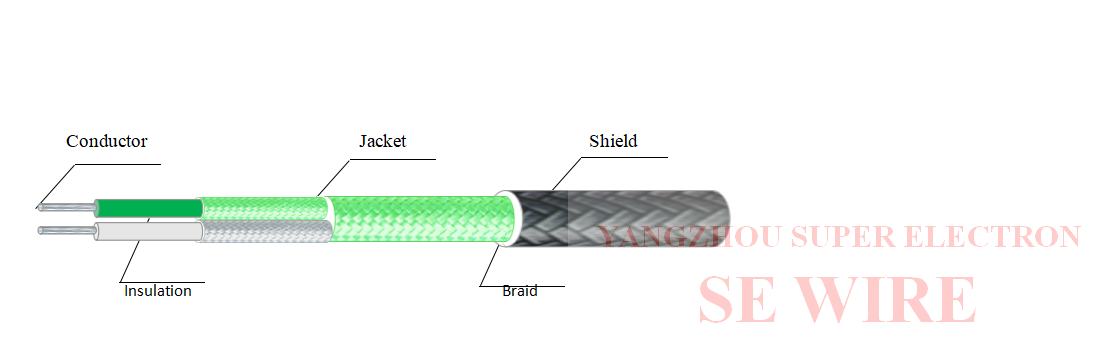

Structure

Conductor: Positive Ni-Cr, NegativeNi-Si /NI-AL

Insulation: PFA

Color: P: Green,N:White

Jacket: Fiberglass Braid With Silicone Resin Coating

Color: P: Green,N:White

Braid: Fiberglass Braid With Silicone Resin Coating

Color:Green

Shield:Stainless Steel Wire
